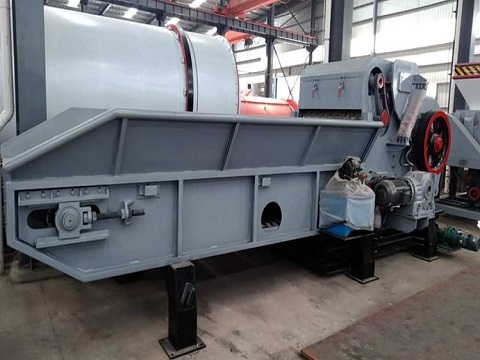

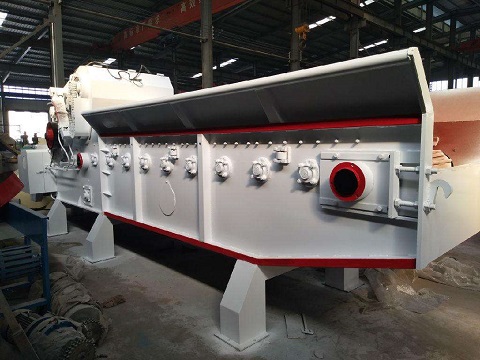

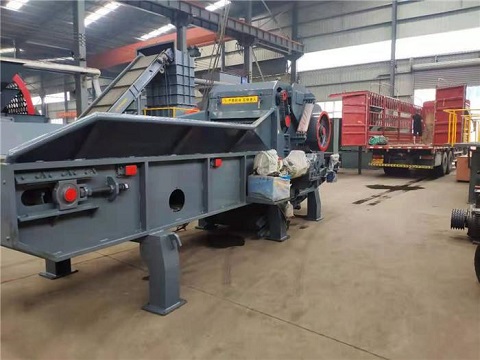

Comprehensive Crusher| Pallet Crushing Machine

Comprehensive crushing machine is used in various industries to process different types of wood. An integrated crusher is often used when recycling wood, which can crush large pieces of wood. The comprehensive crusher can process nailed wood, wooden pallets, construction site waste wood, wooden brackets, branches, wood, etc., as well as various non-wood materials such as various bulk straws, firewood cotton, reeds, and a wide range of applications. The comprehensive crusher uses chainplates to transport the feed, which can make the feed more smoothly and greatly increase the production capacity. It is an ideal equipment for wood crushing.

The integrated crusher mainly relies on impact force to crush wood. When the machine is working, the motor drives the internal rotor to rotate at a high speed, and the wood evenly enters the cavity of the comprehensive crusher. After being impacted by a high-speed rotating hammer, the wood was broken. At the same time, the wood rushes to the baffle in the machine body from the high-speed rotating hammer under its own gravity. There is a sieve plate in the lower part of the machine, and the crushed wood is discharged through the sieve plate smaller than the sieve mesh hole, and the wood larger than the sieve hole size is retained on the sieve plate and continues to be hit and ground by the hammer.

Raw materials that can be crushed by a comprehensive crusher machine

There are many kinds of waste wood, such as leftovers from furniture factories, wooden boards after packaging products, wood waste crafts, some branches in forestry, and some slats used in building materials. Waste wood can be seen everywhere around us. Waste wood can be reused, and the reuse of waste wood after being processed and crushed by a wood shredder can beneficially reduce the waste of wood, and it has a great protective effect on the environment.

Features of comprehensive crusher machine

The comprehensive crusher has two working modes: mobile and fixed. Can meet the different requirements of customers.The main structure includes: the main machine, the feeding chain plate, the bottom receiving and conveying, the unloading conveying and the intelligent electric control part. Its structure is reasonable, the operation is simple and the degree of automation is high. The power part of the mobile comprehensive crusher is a diesel engine, and tires are installed under the machine. The equipment can move freely, which completely solves the problem that the equipment cannot move without electricity.The comprehensive crusher is an improvement from the traditional crusher. The most notable feature is the high output and the wide range of raw materials that can be processed.The machine has a very stable structure, excellent performance, convenient maintenance and repair, and is suitable for a variety of materials.

Parameters of comprehensive crusher machine

Wood crushers are mainly divided into 4 types. The larger the model, the higher the output.The diameter of the knife roller is different depending on the model, the size is also different, the number of blades is 2-8, and the length of the cutting wood chip is between 20-100mm.The cutting length of wood chips can be adjusted freely within the specified range, and the power of the main motor increases with the increase of the model.

model	Feeding size (mm)	Motor power (kw)	Feeding power (kw)	Discharge power (kw)	Speed (r/min)	Production efficiency (t/h)
TY-1000	1000*400	110	5.5*2	3.0	510	15-20
TY-1300	1300*400	132	7.5*2	3.0	510	20-25
TY-1500	1500*400	160	11*2	4.0	365	25-35
TY-1600	1600*400	200	15*2	4.0	365	35-45

Advantages of comprehensive crushing machine

The comprehensive crusher produced by ThoYu factory breaks the traditional process structure mode and is the latest wood crushing equipment developed by our company. The machine adopts chain-type intelligent feeding, which can automatically adjust the feeding speed according to the load of the main motor. The intelligent control system can ensure that the machine runs at full load, avoids no-load operation, makes the feed more smoothly, and greatly improves the production capacity.The comprehensive crusher is the ideal equipment for all kinds of wood processing.
