wood crushing machine

Wood Crushing Machine

thoyu

Wood crushing machine is specially designed to prepare raw materials for further production. And wood crusher can crush branches, tree roots, slab scraps and so on. Besides, wood crushing equipment occupies little room which makes it quite popular in small size biomass fuel plants.

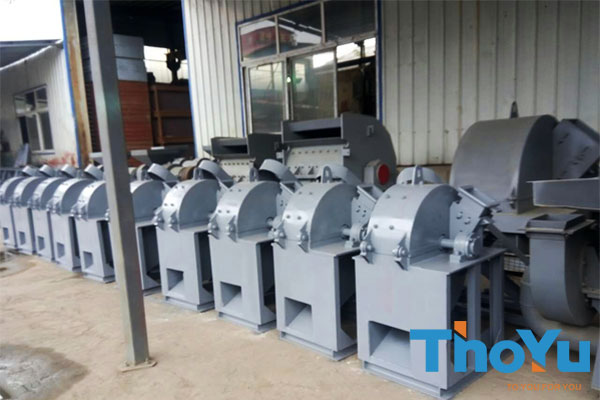

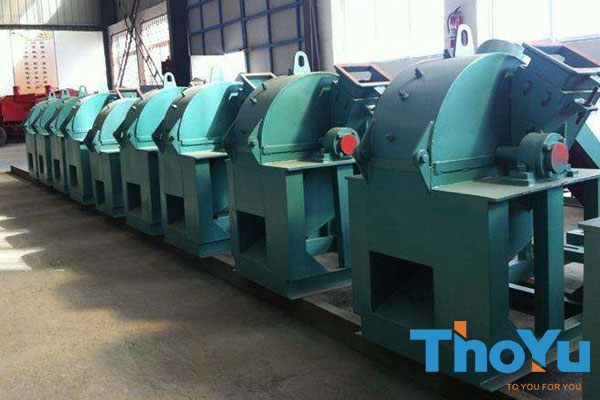

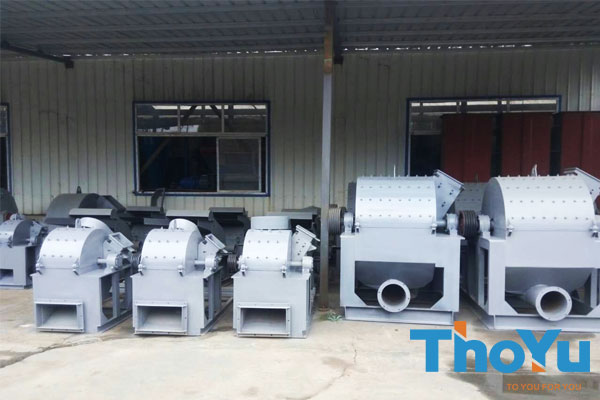

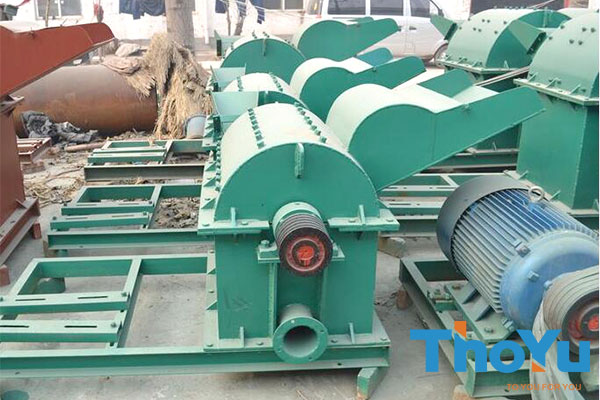

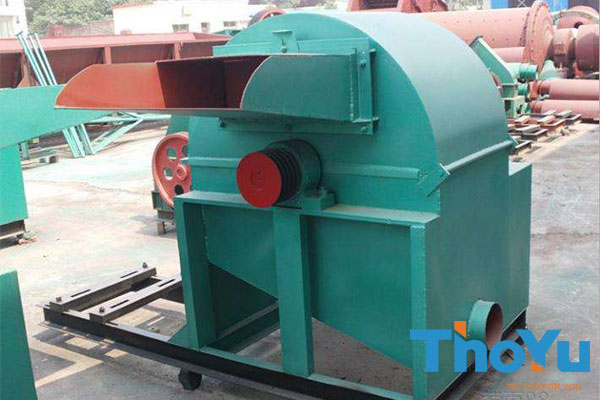

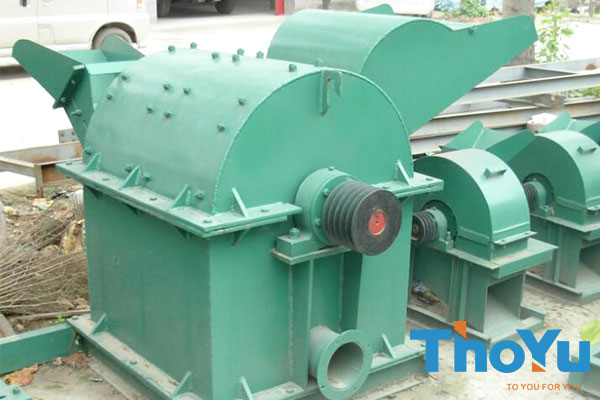

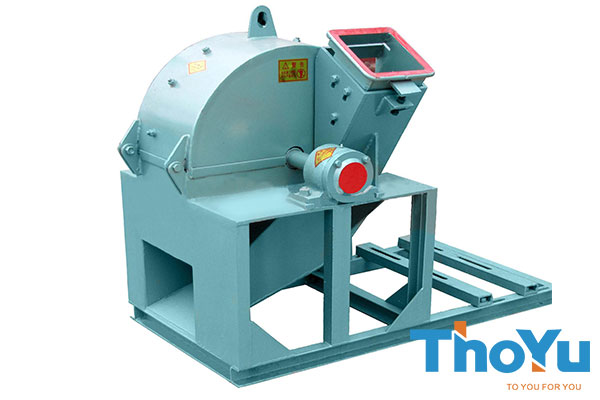

Multi-purpose wood crushing machine



Multi-purpose wood crushing machine parameters
Type TYFS40 TYFS60 TYFS80 TYFS100 TYFS120
Flail knife qty 16 24 32 60 80
Main engine power(kW) 5.5 7.5 22 55 75
Fan power (kW) 5.5 7.5
Flail knife feeding size (mm) 400*250 500*300 600*350 800*450 1000*550
Max feed diameter (mm) 30 40 50 80 100
Final dimension (mm) 3-5
Production capacity (kg/h) 150 220 800 2500 5200

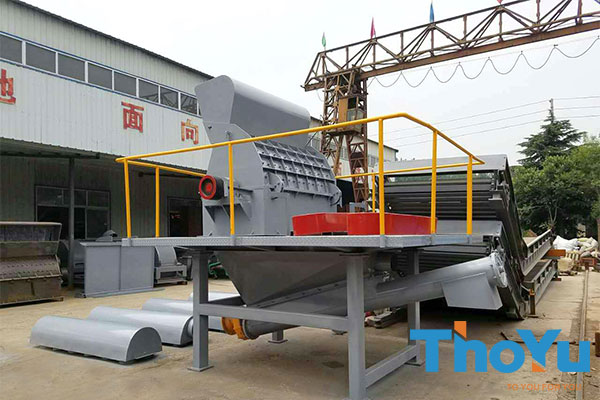

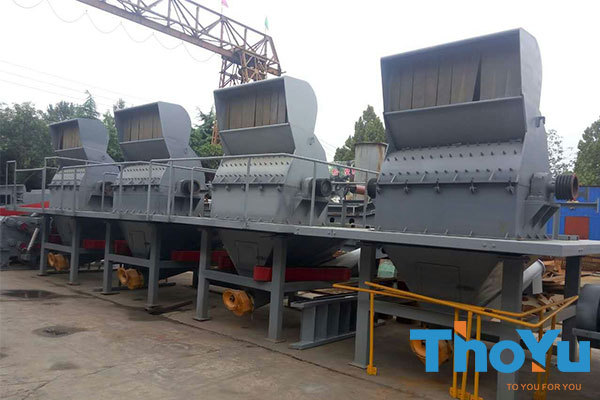

2. Wood Pallet Crusher

Wood pallet crusher machine is used to prepare raw materials for further production of wood pallet. And it can crush waste pallet, bamboo shelves, brackets, wood bark pieces, three ply board and so on. Hence, wood pallet crusher is widely used in scrap wood processing enterprises, power plants wood bark pieces broken processing base and three-ply board workshop. The whole machine takes one linkage control to conveying, feeding, clamp and crushing.

Wood pallet crusher machine parameters
Model TYTP-1300
Capacity 6-8 t/h
Main power 75 kW+7.5 kW+5.5 kW+3 kW+1.5 kW
Feeding width 1300 mm
Voltage 380 V, 50 Hz, 3-Phase
Weight 7.8 tons
Dimension 9000*2600*1500 mm
Feeding mode Belt conveyor
Feeding belt length 4-6 m
Iron removal mode Strong magnetic drum stick
Outing belt length 6 m
